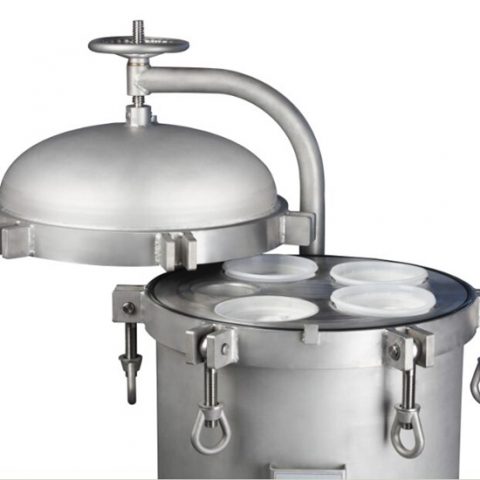

Multi- bag vessel
- Heavy duty design for industrial applications
- Side in and side out/ Side in and bottom out/ Bottom in and bottom out
- V-clamp cover / swing bolt cover / swing bolt with davit assisted arm
- Max. working pressure: 150psi(10bar)
- Max. temperature: 250°F(120℃)
- Material: carbon steel, 304 or 316L stainless steel is available
- Seal: Buna-N, EPDM, Viton, Teflon
- Finish: glass bead;
- Connection: raised face 150-lb ANSI flange
- For filter bag size #1 & #2
- Top cover with NPT vent or gauge, drain on the bottom
- Heavy duty stainless steel support legs
- From 2 to 24 bags
| Type | Bag Size | Material of Construction | Number of Bags | Connection | Inlet/outlet Size (inch) | O-ring Option | Finishing |
| BH | 01-size 102 – Size 2 | 3-carbon steel
4-SUS304 |
2- 2 pcs | 14 – 14 pcs |
N-NPTF B-BSPF A-ANSI Flange D-DIN Flange C-Sanitary Clamp |
20-2″ | 90-9″ |
E -EPDM S-Silicone V -Viton W -Teflon encapsulated Viton |
P-Polish GB-Glass Bead |
