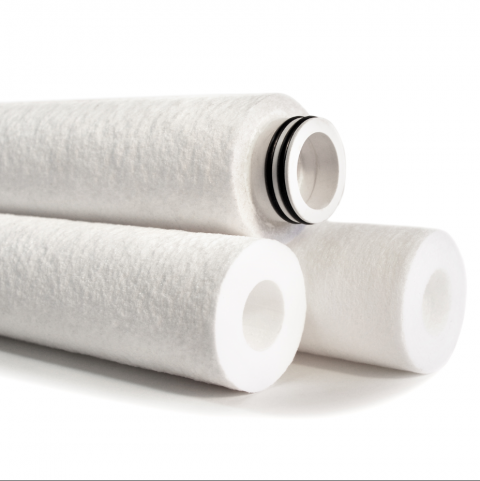

Utter high performance PP melt blown filter cartridges are constructed from high-tech and precisely automatic controlled machines. The cartridges are made of polypropylene resin which is ideal for most general filtration requirements.
Features
- 100% polypropylene construction provides excellent chemical compatibility with a variety of process fluids and applications
- Elements are made from 1 to 100 micron in standard
- Elements are produced in standard and custom sizes to meet all applications
- End caps are thermally welded onto the cartridge with no use of glue
- All kinds of adaptors are available.
Application
- Prefiltration in process water treatment industry
- Clarification for waste water treatment
- Bottled water, wine, beer pre-filtration in food & beverage industry
- Prefiltration before RO system in electronics process water
- Organic solvents, inks, plating solution, metal cutting, fluids, photoresist filtration
10″ Melt Blow PP Filter Cartridge Flow Rate
| Construction Material | Filter Media | Melt Blown Polypropylene |
| Support Layers | Polypropylene | |
| Micron Rating | 1.0, 5.0, 10, 20, 50, 70, 100μm | |
| Inner Core | Polypropylene or coreless | |
| O-ring | Silicone, Nitrile, EPDM, Viton, Teflon | |
| Filtration Efficiency | ≥80% | |
| Dimensions | Outer Diameter | 63mm (2.5″)/114mm(4.5″) |
| Inner Diameter | 28mm (1.10″) | |
| Length | 5″, 10″, 20″, 30″, 40″ | |
| Filtration Area | 0.4㎡ per 10″ | |
| Operating Conditions | Normal Operating Temp. | Up to 50℃(131℉) |
| Max. Operating Temp. | 80℃(176℉) at △P≤1.0bar(14psi) | |
| Normal Flow Direction | 4.0bar(58psi) at 25℃(77℉) | |
| Reverse Flow Direction | 2.0bar(29psi) at 25℃(77℉) | |
| pH Range | 1~13 | |
| Sterilization | Not recommended |
| Type | Micron Ratings | Length | O-ring | End Cap Option |
| MBP – Melt Blown PP Filter Cartridge |
02 – 0.2μm | 10 – 10″ 20 – 20″ 30 – 30″ 40 – 40″ Other customized sizes |
S – Silicone E – EPDM V – Viton W – Teflon encapsulated viton |
0 – flat gasket DOE 5 – 2-222 flat 6 – 2-226 flat 8 – 2-222 fin 9 – 2-226 fin |
| 045 – 0.45μm | ||||
| 1 – 1μm | ||||
| 2- 2μm | ||||
| 3- 3μm | ||||
| 5 – 5μm | ||||
| 10 – 10μm | ||||
| 30 – 30μm | ||||
| 40 – 40μm | ||||
| 70 – 70μm |
