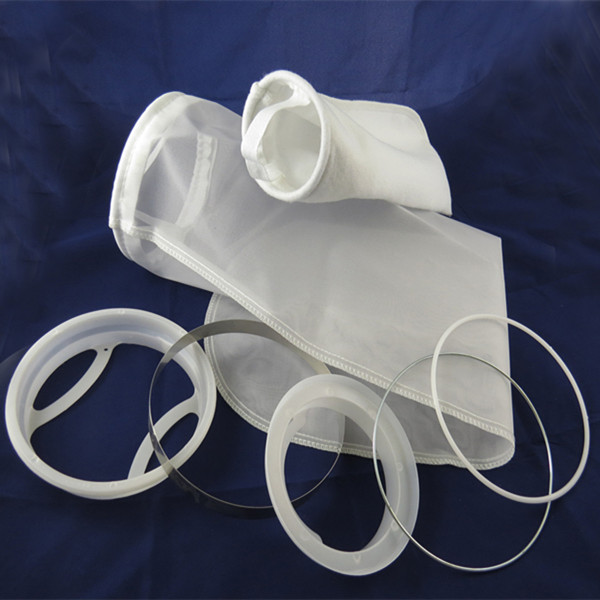

Utter supplies filter bags in various materials which come in a wide assortment of collars and top rings that ensure general compatibility with most commercial bag filter housings in the market.
Features
- All standard sizes are available with different top rings to offer you the proper filter bag to adapt with existing filter housings
- Ratings from 1 to 1000 micron and different filter media suitable to your application
- Bag handles are optional with no additional cost
- Multi-layered filter bags are available
- Customized bags are available
Application
Electronics, food & beverage, petrochemical process, chemicals, paints & coatings, pre RO, waste water treatment, oil refinery
| Filter Media | Polypropylene Felt, Polyester Felt, PTFE Felt, Nylon Multifilament, Polypropylene Mesh, Polyester Mesh, Nylon Mesh |
| Micron Rating | 1, 5, 10, 25, 50, 75, 100, 150, 200, 250, 300, 500, 800, 1000μm |
| Top Ring Style | FSI, Hayward, X100, SUS Snap Ring, other customized styles |
| Top Ring Material | Stainless Steel, Polypropylene, Polyester, Zinc-pleated, Tie-on Bag |
| Type of Bottom | Round, Tine |
| Seam | Welded, Sewn |
| Size | Size 1: φ7“x16.5″ 2.3ft² 90GPM Size 2: φ7“x32″ 4.7ft² 200GPM Size 3: φ4“x9″ 0.7ft² 25GPM Size 4: φ4“x15″ 1.2ft² 45GPM other customized sizes on request |
Operation Data
| Filter Media | Polyester | Polypropylene | Nylon | PTFE |
| Abrasion & Flex | Good | Good | Excellent | Poor |
| Weak Acid | Good | Excellent | Fair | Excellent |
| Strong Acid | Good | Excellent | Poor | Excellent |
| Weak Alkali | Good | Excellent | Excellent | Excellent |
| Strong Alkali | Poor | Excellent | Excellent | Excellent |
| Solvents | Good | Fair | Good | Excellent |
| Max. Operating Temp. | 160℃(320℉) | 70℃(160℉) | 150℃(300℉) | 260℃(500℉) |
| Type | Top Ring Stype | Micron Rating | Filter Media | Option |
| B1 – Size 1 B2 – Size 2 B3 – Size 3 B4 Size 4 |
P – Polypropylene E – Polyester S – SUS304 Z- Zinc Plated Steel T – Tie-on Bag |
1 – 1μm 5 – 5μm 10 – 10μm 20 – 20μm 30 – 30μm 100 – 100μm 1000 – 1000μm |
P – Polypropylene E – Polyester NMO – Nylon T – PTFE |
W – Welded S – Sewn D – Double Layers other customized types |
